Manifold Valves

Manifold Valves

  • DLOK Manifold Valves are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Available in various configurations such as pipe to pipe, pipe to flange, and flange to flange.
  • Maximum working pressure up to 10,000 psig (689 bar).
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature up to 538°C (1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak-tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.
Enquiry Catalogue

Products

2 Valve Manifolds

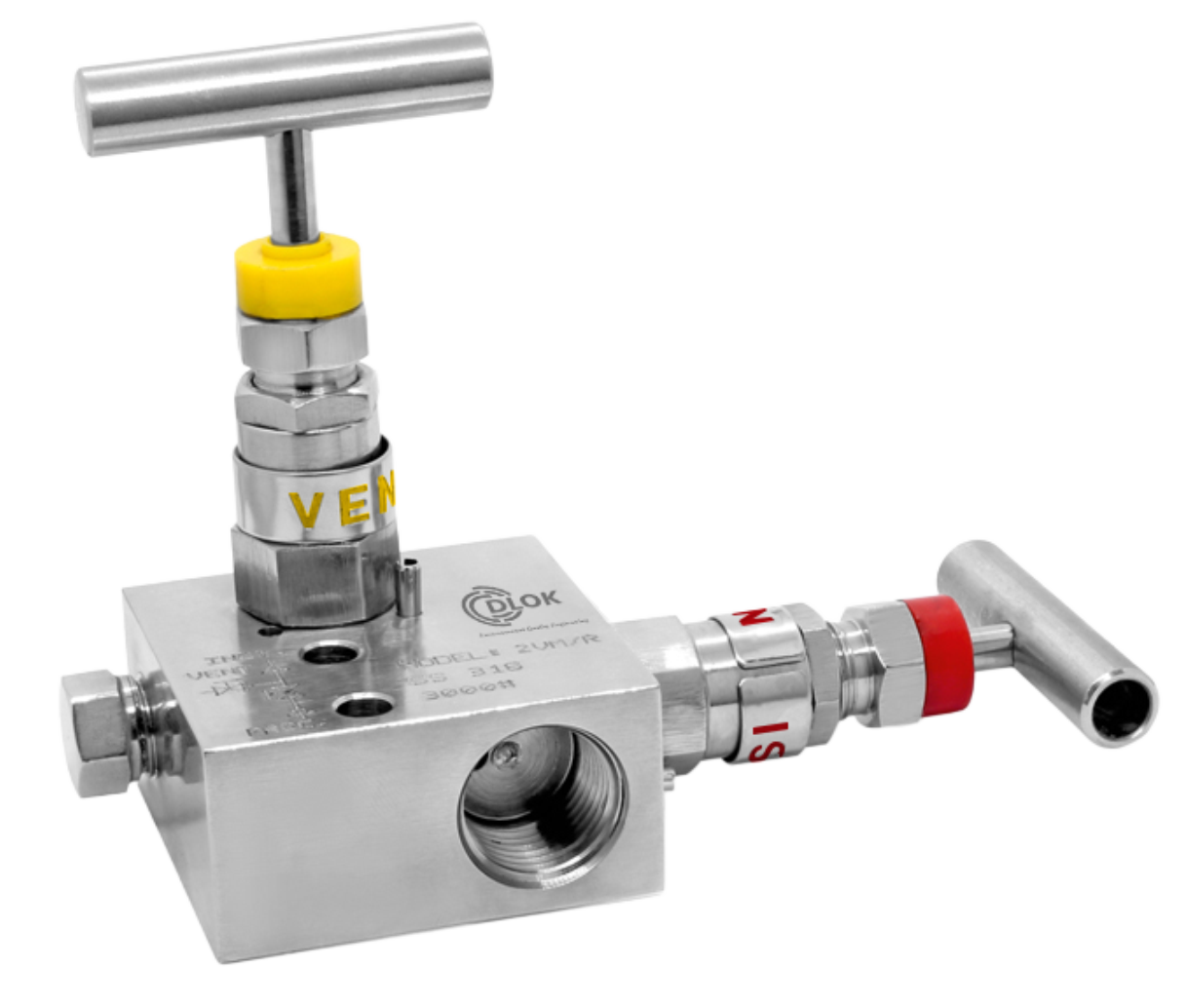

Pipe to Pipe (D-2VM-L) Pipe to Pipe (D-2VM-L)

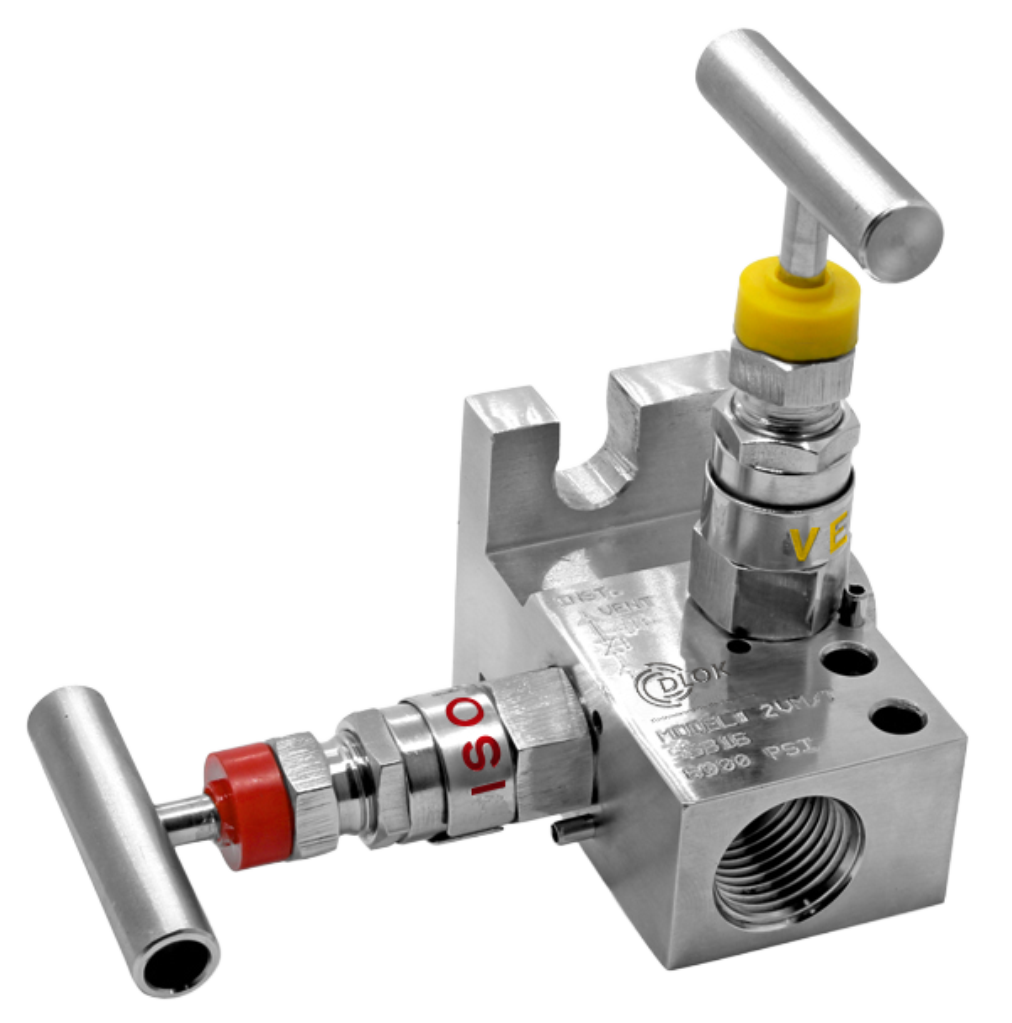

Pipe to Flange (D-2VM-T) Pipe to Flange (D-2VM-T)

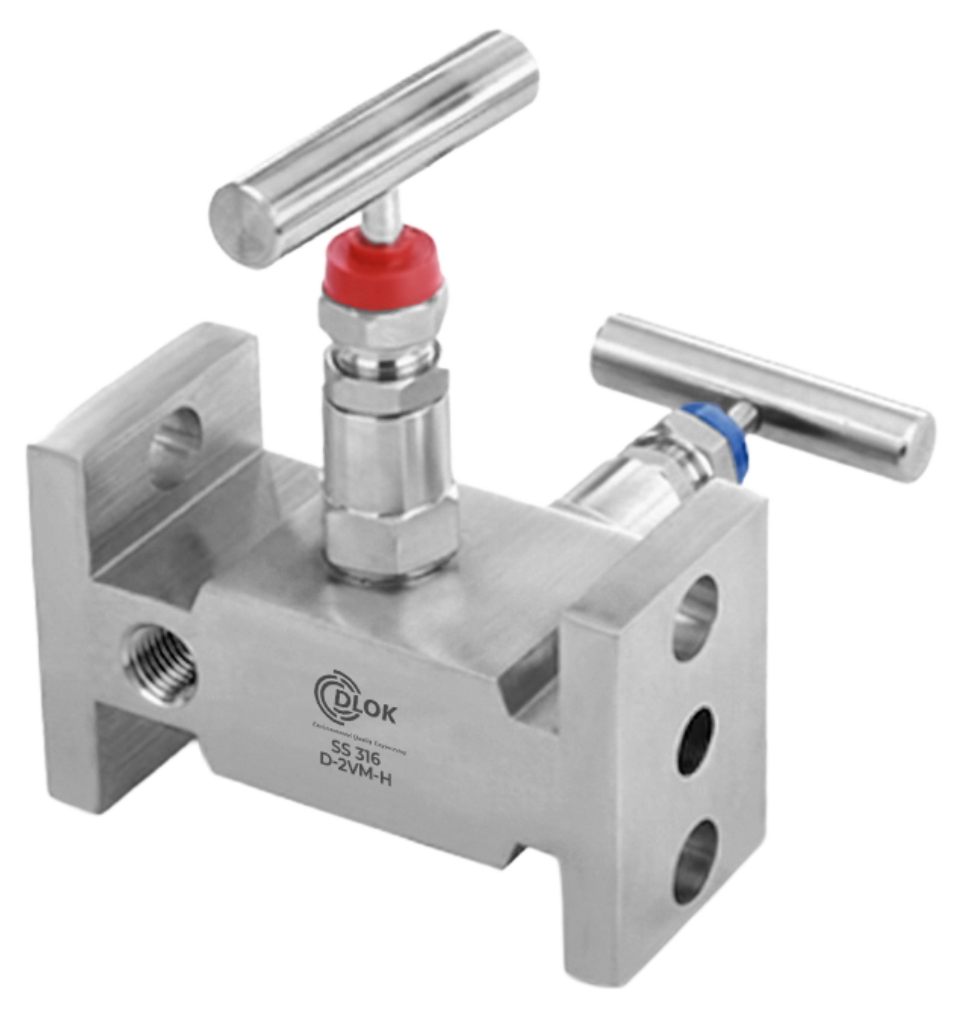

Flange to Flange (D-2VM-H) Flange to Flange (D-2VM-H)

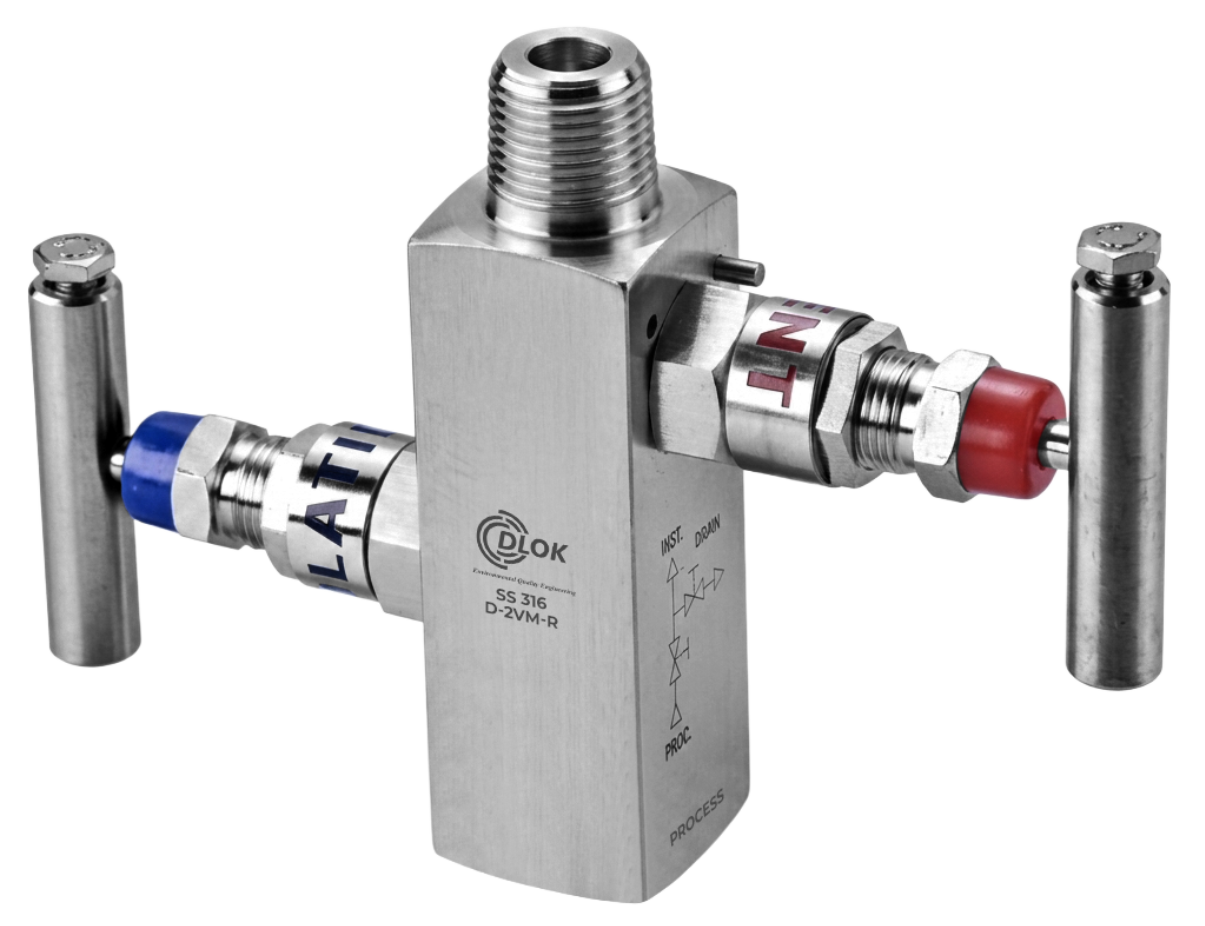

Remote Mount (D-2VM-R) Remote Mount (D-2VM-R)

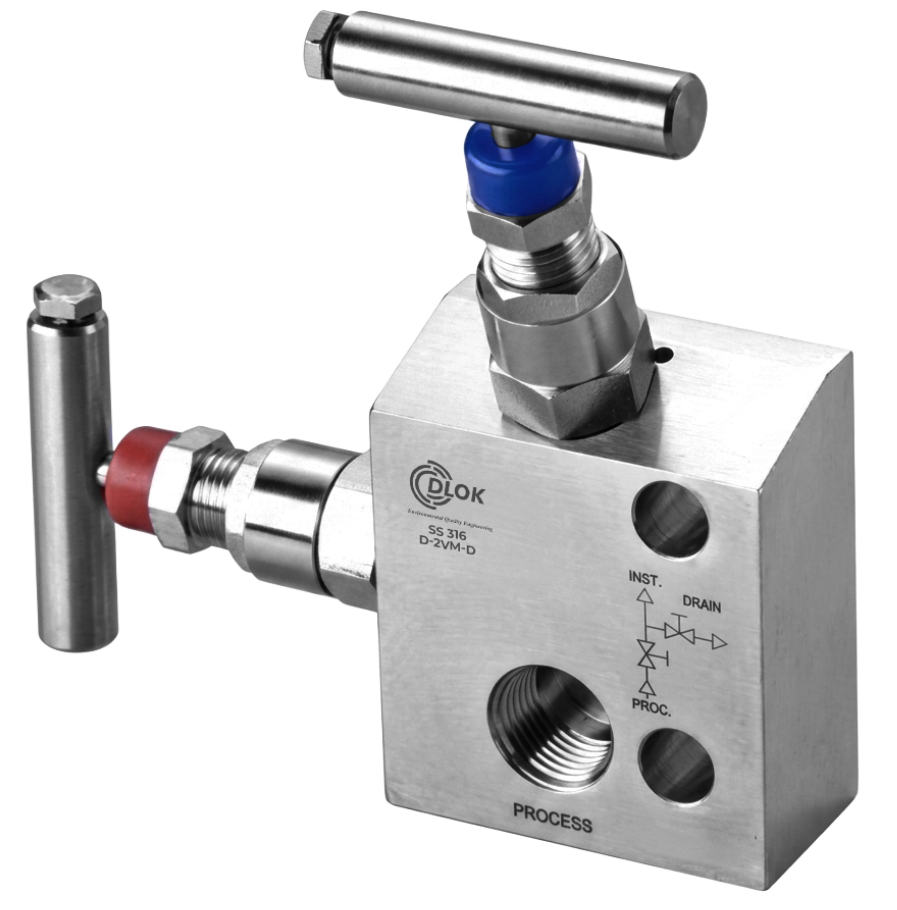

Direct Mount (D-2VM-D) Direct Mount (D-2VM-D)

3 valve Manifolds

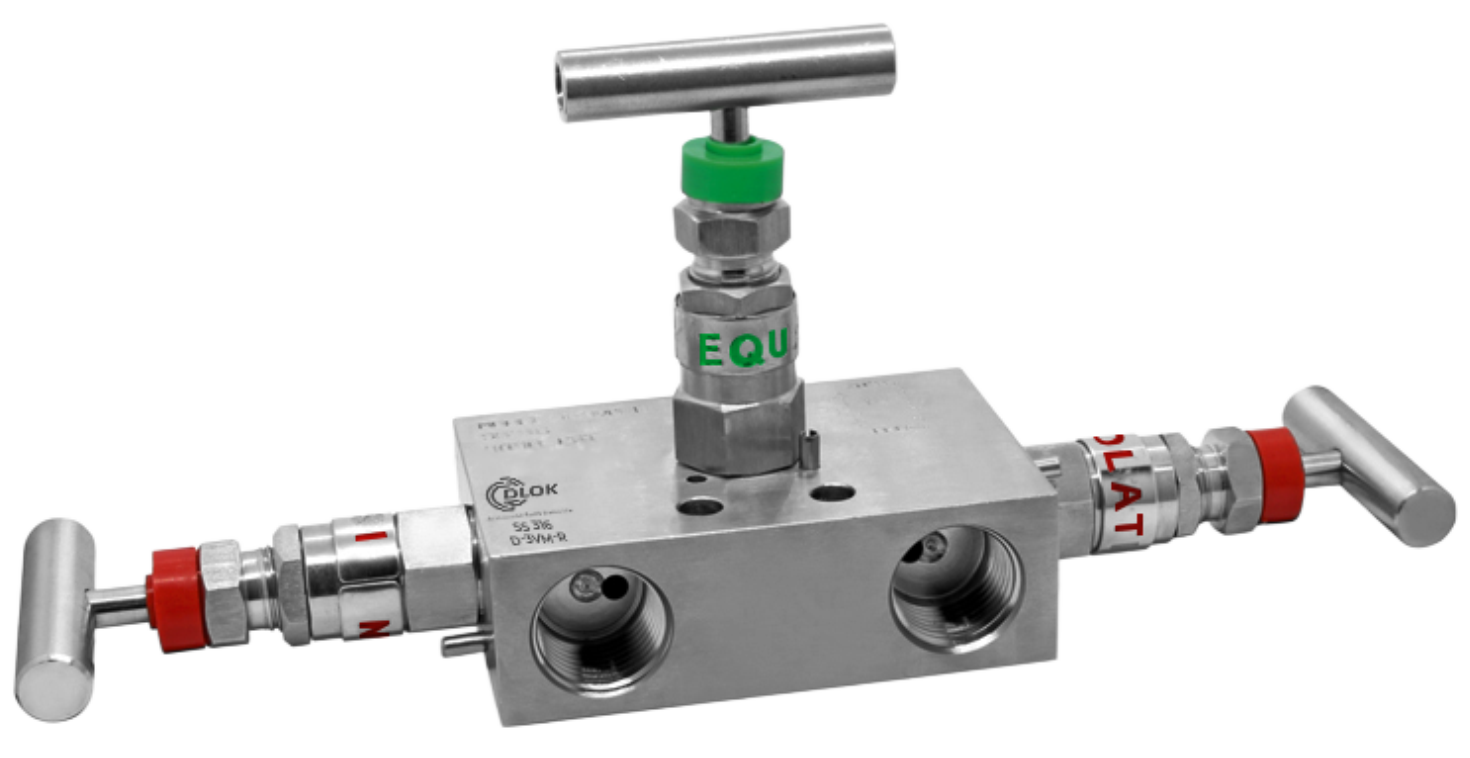

Pipe to Pipe (D-3VM-R) Pipe to Pipe (D-3VM-R)

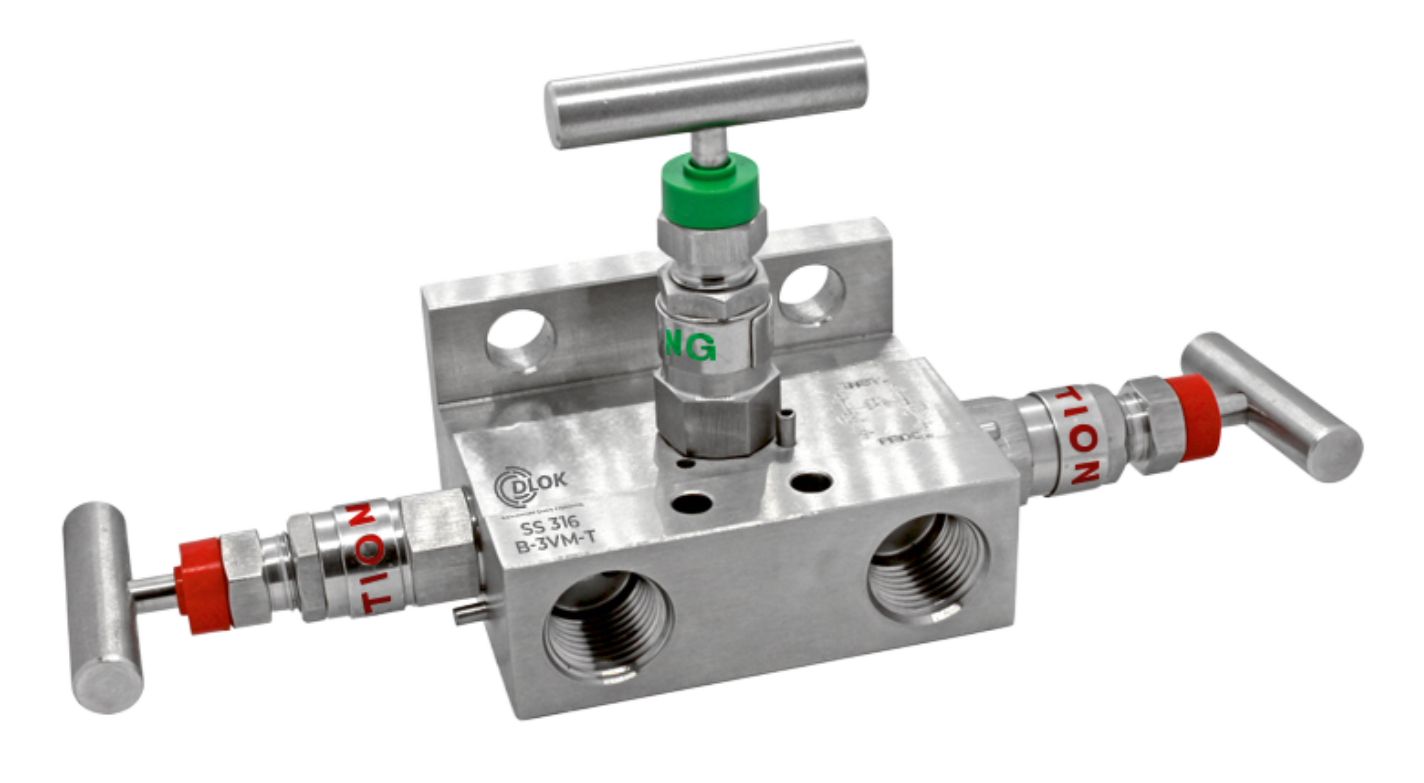

Pipe to Flange (D-3VM-T) Pipe to Flange (D-3VM-T)

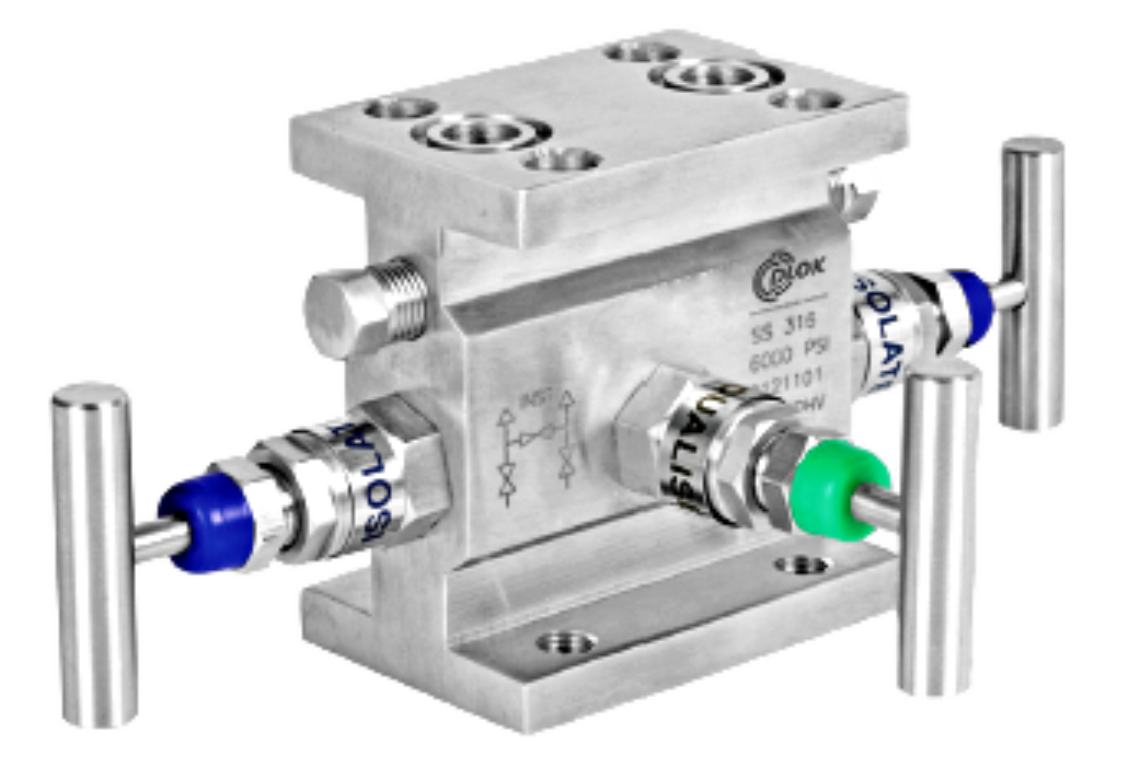

Flange to Flange (D-3VM-H) Flange to Flange (D-3VM-H)

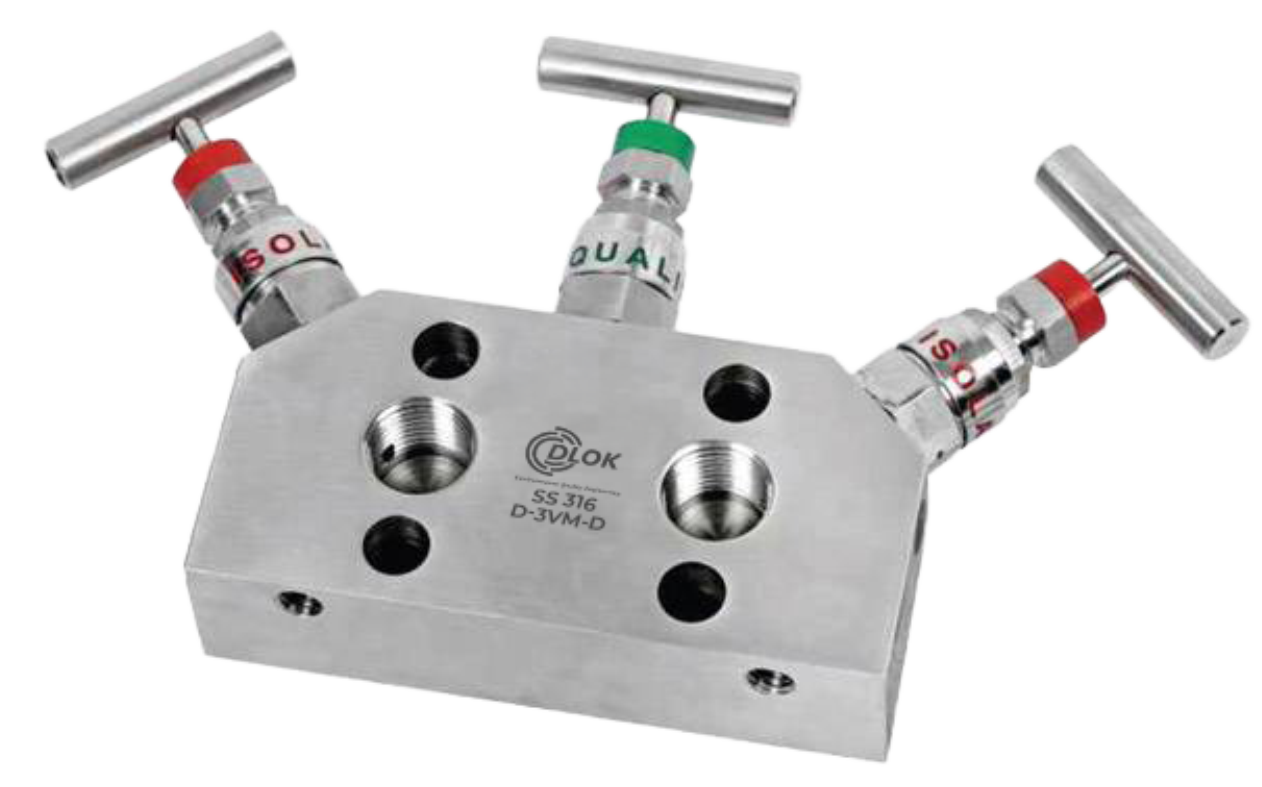

Direct Mount (D-3VM-D) Direct Mount (D-3VM-D)

5 Valve Manifolds

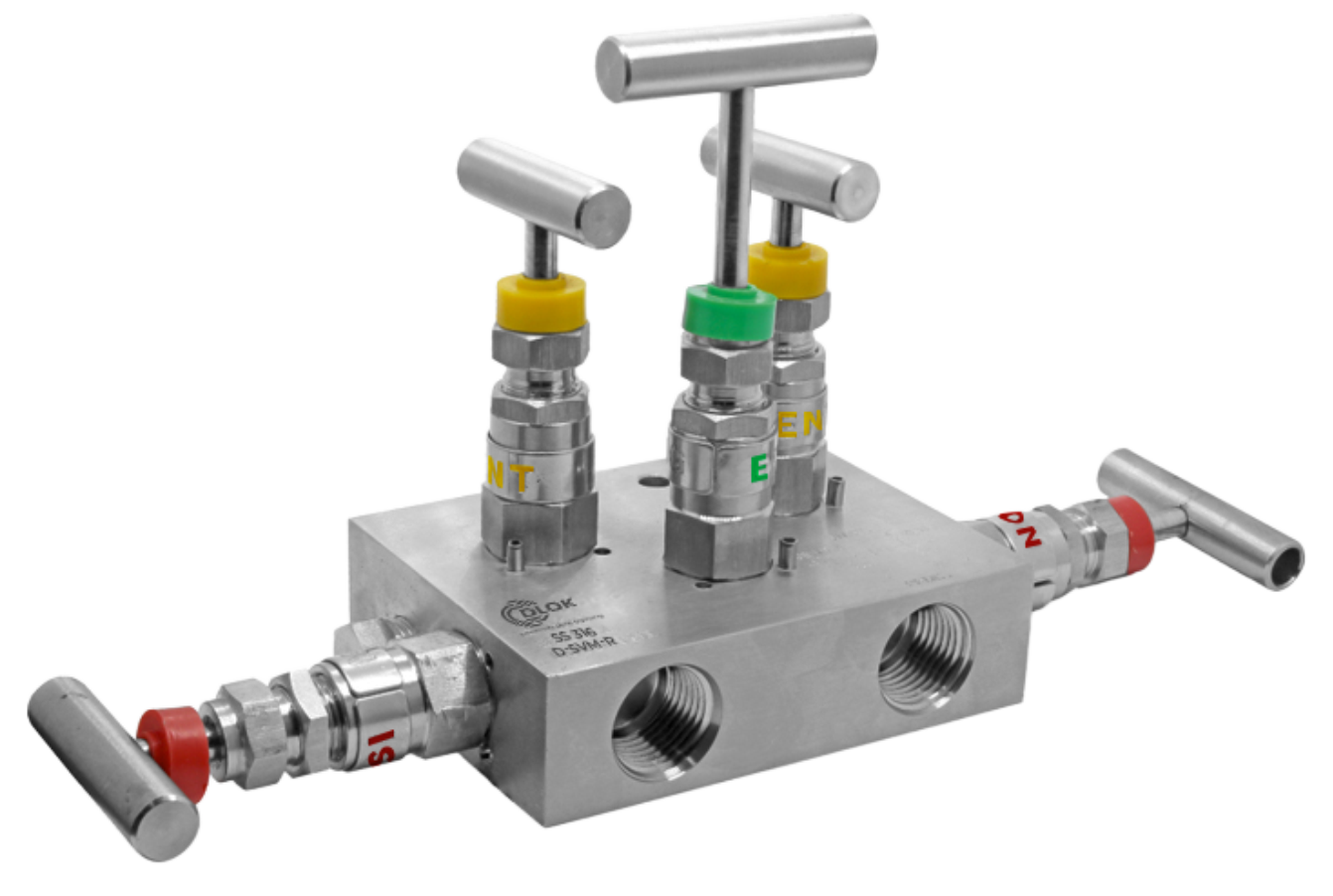

Pipe to Pipe (D-5VM-R) Pipe to Pipe (D-5VM-R)

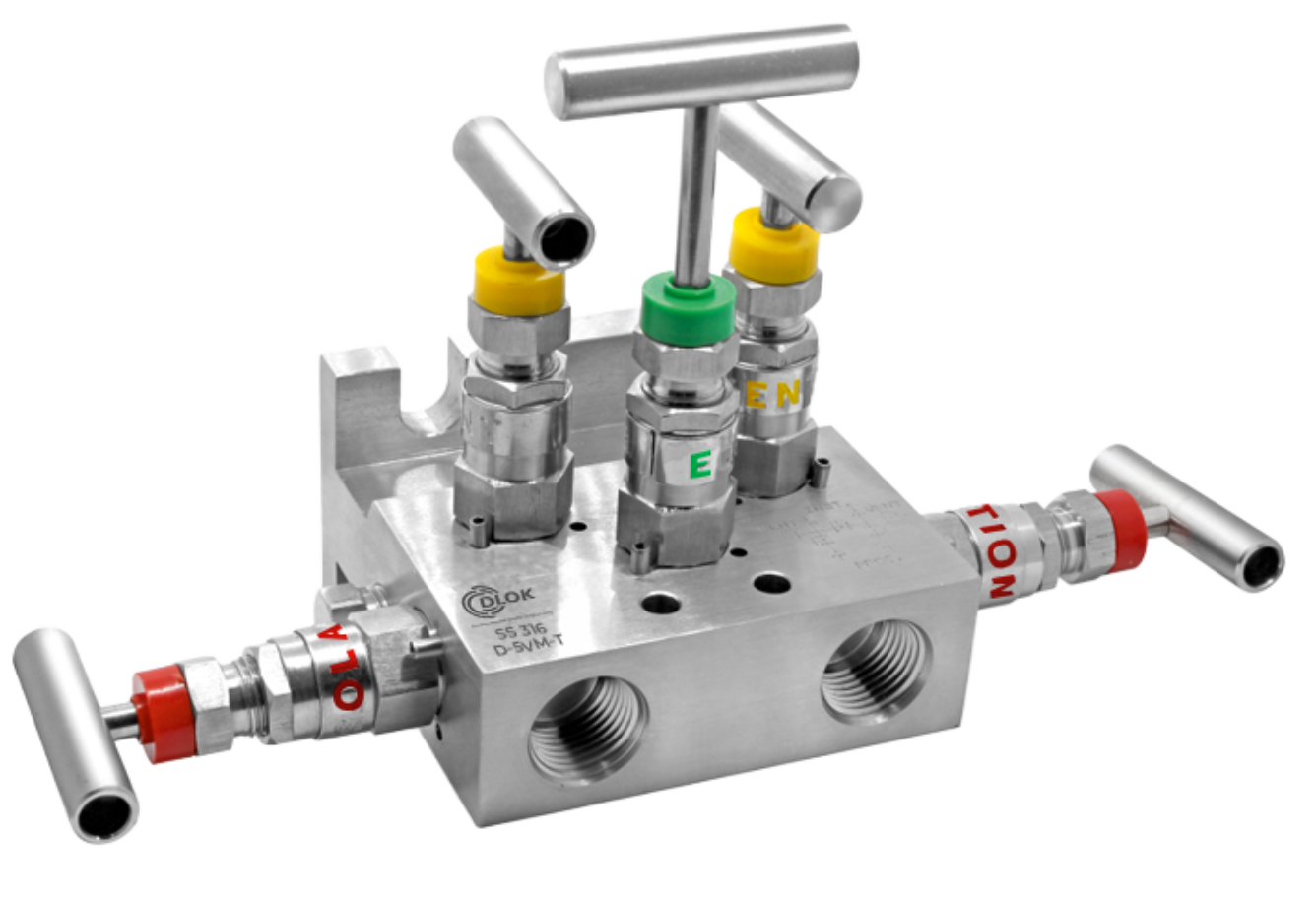

Pipe to Flange (D-5VM-T) Pipe to Flange (D-5VM-T)

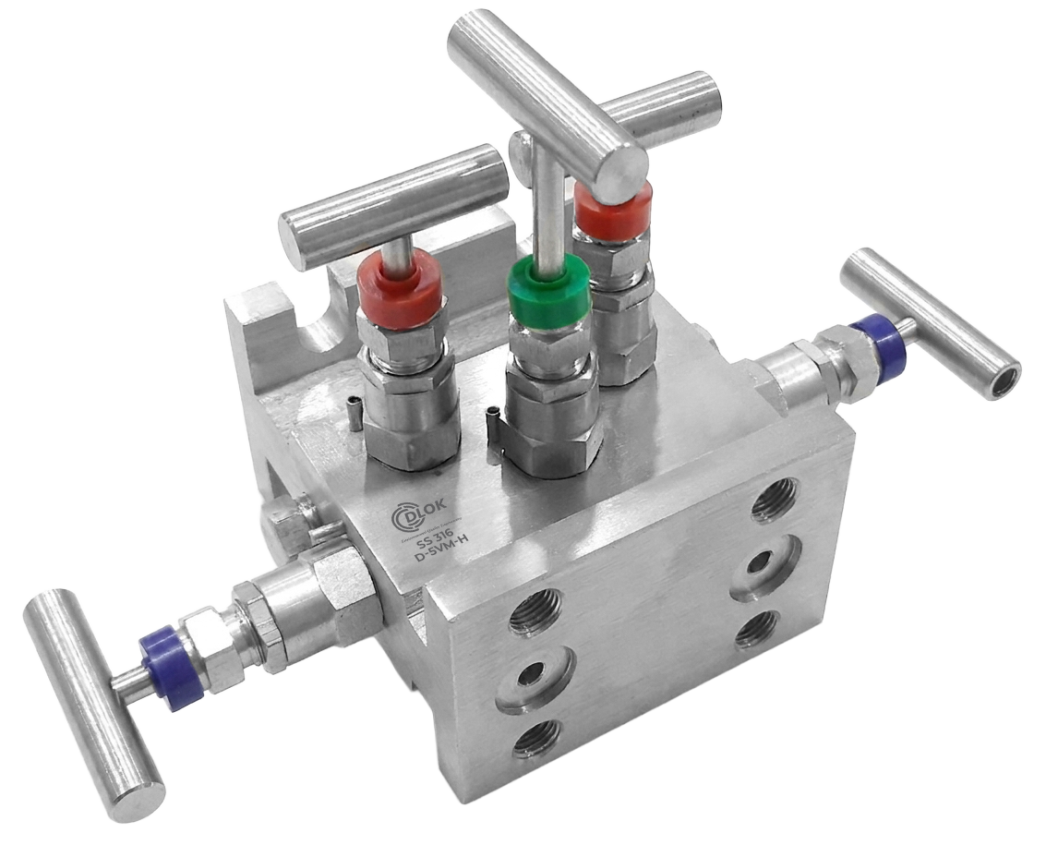

Flange to Flange (D-5VM-H) Flange to Flange (D-5VM-H)

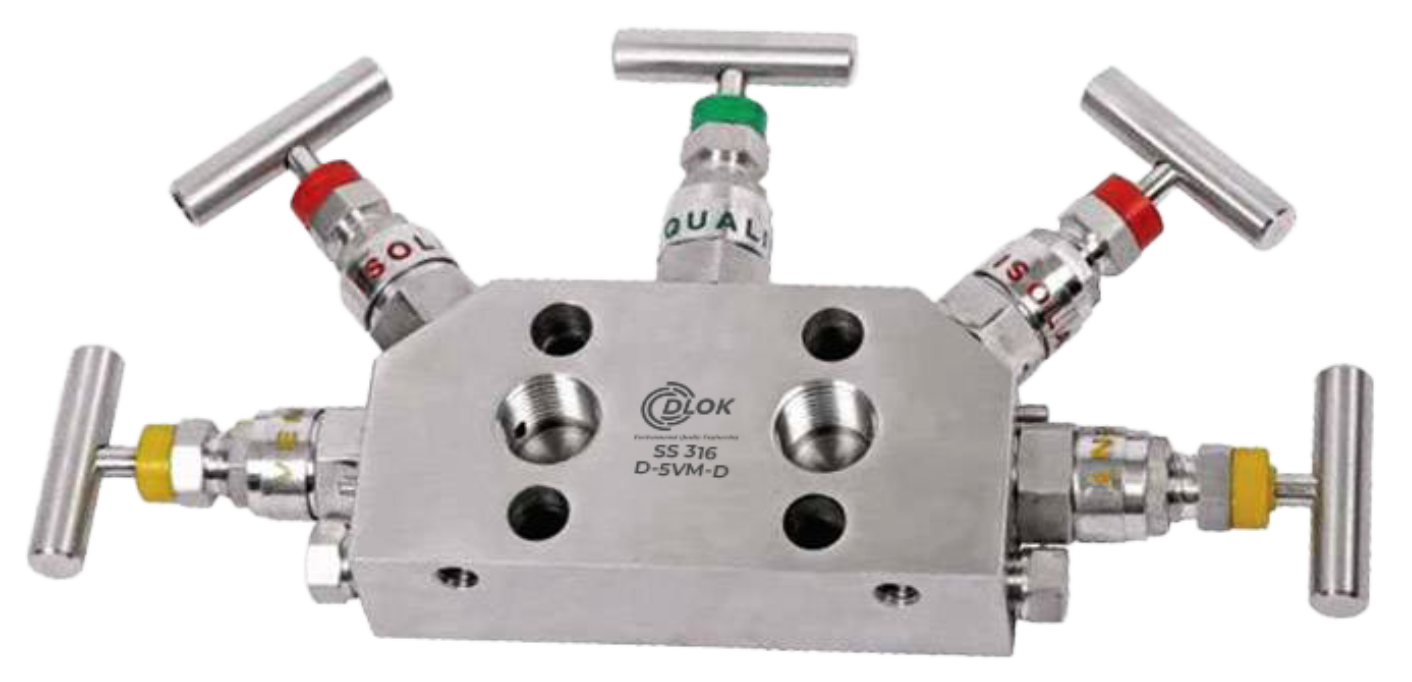

Direct Mount (D-5VM-D) Direct Mount (D-5VM-D)
